(Solved)2001 GU Patrol (Y61) going into limp home mode

Below post starts with car model 2001 GU Patrol (Y61) symptom that car kept going into limp home mode, then recommended to have one Foxwell AutoMaster Pro NT624 scanner to solved. How this story goes? Go on reading following parts. Hope it helps.

Car model: 2001 GU Patrol (Y61) with a 4.8 lt petrol

Symptoms:

My car kept going into limp home mode and i could not drive it (well).

Scan Tool to use:

Foxwell AutoMaster Pro Series tools: Foxwell AutoMaster Pro NT624

I use AutoMaster Pro NT624 to check ECU and read out fault code as below:

PO134 H02S1 (B1) – Heated O2 Sensor Bank 1 Sensor 1

P1122 ETC FUNCTION/CRC – Throttle Body Actuation -Electronic Traction Control

P1123 ETC Mot RLY/CRC – Electronic Traction Control – Motor Relay

After cleared the fault code, I got the left code:

P1122 ETC FUNCTION/CRC – Throttle Body Actuation -Electronic Traction Control

Then I have a quick check of the live data for the Throttle Body motor, when graphed against the Throttle Position Sensor, revealed that the throttle body motor was in-fact intermittently faulty. Causing a correlation error -Throttle position sensor not accurately reflecting the a accelerator position sensor.

Then I decided to do a quick check on the fault code:

PO134 H02S1 (B1) – Heated O2 Sensor Bank 1 Sensor 1

As this would take a drive cycle (potentially) to reset. We naviaged to the live data for the both O2 Sensors and graphed them together. With O2 Sensors, the general rule of thumb is to see them switch between rich and lean (0.1 -ish- and 0.9 -ish- Volts) around 8 times over 10 seconds at 2000 rpm. Watching each O2 sensor signal I counted the crosses (switching between 0.1 – 0.9) and found that wile the bank 2 (rear) sensor was crossing around 5 times (a lazy sensor) the bank 1 (front) was struggling to make 3 crosses. Both sensors where more often on the lean side. So although not technically a current fault, I was suggested to also replace my O2 sensors as they are both currently lazy -one more so than the other- and likely to need replacement in the future.
source:http://www.foxwellsupport.com/2001-gu-patrol-y61-going-into-limp-home-mode-solved/

(Solved)2001 GU Patrol (Y61) going into limp home mode

Below post starts with car model 2001 GU Patrol (Y61) symptom that car kept going into limp home mode, then recommended to have one Foxwell AutoMaster Pro NT624 scanner to solved. How this story goes? Go on reading following parts. Hope it helps.

Car model: 2001 GU Patrol (Y61) with a 4.8 lt petrol

Symptoms:

My car kept going into limp home mode and i could not drive it (well).

Scan Tool to use:

Foxwell AutoMaster Pro Series tools: Foxwell AutoMaster Pro NT624

I use AutoMaster Pro NT624 to check ECU and read out fault code as below:

PO134 H02S1 (B1) – Heated O2 Sensor Bank 1 Sensor 1

P1122 ETC FUNCTION/CRC – Throttle Body Actuation -Electronic Traction Control

P1123 ETC Mot RLY/CRC – Electronic Traction Control – Motor Relay

After cleared the fault code, I got the left code:

P1122 ETC FUNCTION/CRC – Throttle Body Actuation -Electronic Traction Control

Then I have a quick check of the live data for the Throttle Body motor, when graphed against the Throttle Position Sensor, revealed that the throttle body motor was in-fact intermittently faulty. Causing a correlation error -Throttle position sensor not accurately reflecting the a accelerator position sensor.

Then I decided to do a quick check on the fault code:

PO134 H02S1 (B1) – Heated O2 Sensor Bank 1 Sensor 1

As this would take a drive cycle (potentially) to reset. We naviaged to the live data for the both O2 Sensors and graphed them together. With O2 Sensors, the general rule of thumb is to see them switch between rich and lean (0.1 -ish- and 0.9 -ish- Volts) around 8 times over 10 seconds at 2000 rpm. Watching each O2 sensor signal I counted the crosses (switching between 0.1 – 0.9) and found that wile the bank 2 (rear) sensor was crossing around 5 times (a lazy sensor) the bank 1 (front) was struggling to make 3 crosses. Both sensors where more often on the lean side. So although not technically a current fault, I was suggested to also replace my O2 sensors as they are both currently lazy -one more so than the other- and likely to need replacement in the future.
source:http://www.foxwellsupport.com/2001-gu-patrol-y61-going-into-limp-home-mode-solved/

Original Xentry Connect C5 remove hard disk

It's aimed to help remove the hard disk from the original Xentry Connect C5 (SD connect C5) Star diagnostic tool.

you need:

Benz SD C5 Connect

a tweezers
a screwdriver

Here goes the key- remove the hard disk within STAR C5 step by step.

remove the  protective layer

use the screwdriver to to take off the screws



take off the cover and the card



turn to the other side and take off the screws and the cover



this is the Xentry connect hard disk

you cannot remove it now

turn to the other side

use the tweezers to take off the side cover gently (pay attention to cables connected)



back to the side with the hard disk

now, you can remove it

remove the hard disk from sd connect c5 - SUCCESS!

Done!

http://blog.mbstarshop.com/2016/07/19/xentry-connect-c5-remove-hard-disk/

Diagnosing and coding BMW E31 E38 using Foxwell NT510 scanner

I found this Foxwell NT510 scanner chart that shows the specific function per BMW model which is helpful. foxwellshop has NT510 scanner for $179, but I found it on ECS for $199. Seems pretty reasonable for all the readout capability and the coding it claims. Plus you can buy additional software (only $70USD) for one of other manufacturers (Including AU FORD, BMW, Chrysler, Fiat, GM, Honda, Hyundai, Holden, Land Rover, OPEL, Toyota and VAG) as well. One another thing to consider about this tool is that the software updates for it are free for the first 18 months only, and after that only the cost of updates is only 60USD.

I have to use for my BMW E31 and E38. I can speak to ease of use and functionality.

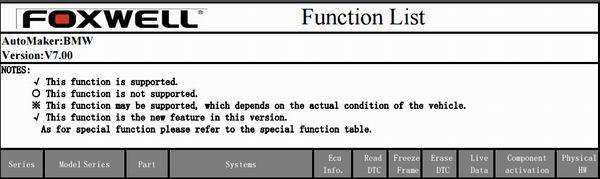

As you can see below chart is Foxwell NT510 Scanner workable function on BMW E31.
